钼镧合金

钼镧合金板（英文名称：Tungsten Lanthanum Alloy）钼镧合金是在钼基体中以弥散质点存在的三氧化二镧组成的合金。三氧化二镧含量一般为0.5%~2.5%(质量分数)。钼镧合金在拥有纯钼特性的同

Support hotline：

Recommended Products

Product Details

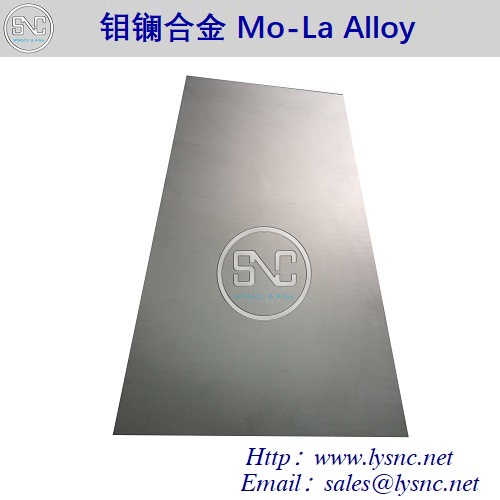

Molybdenum- Lanthanum Alloy

Molybdenum-lathanum alloy is an alloy composed of antimony trioxide in a molybdenum matrix with dispersed particles. The content of antimony trioxide is generally from 0.5% to 2.5% (mass fraction). Molybdenum-niobium alloy has a higher recrystallization temperature than pure molybdenum and has a longer service life than pure molybdenum.
Molybdenum-lathanum alloy sheets are widely used in various fields. Such as high temperature furnace heat shield and heating body, electric light source parts and electric vacuum devices, ion implantation parts and so on.

Available Molybdenum- Lanthanum Alloy plate specifications

Thickness (mm)	Width (mm)	Length (mm)	surface condition
0.1±0.01	100±0.2	500±2.0	Alkali wash
0.2±0.02	400±1.0	2000±2.0	Alkali wash
0.3±0.02	500±1.0	2000±2.0	Alkali wash
0.4±0.04	500±1.0	2000±2.0	Alkali wash
0.5±0.04	550±1.0	2000±2.0	Alkali wash
0.8±0.08	600±1.0	2000±2.0	Alkali wash
1.0±0.06	600±1.0	2000±2.0	Alkali wash
1.5±0.08	600±1.0	2000±2.0	Alkali wash
2.0±0.10	600±1.0	2000±2.0	Alkali wash
3.0±0.10	600±1.0	2000±2.0	Alkali wash
3-10	560±1.0	2000±2.0	Polishing
10-20	400±1.0	800±2.0	Polishing
20-30	400±1.0	700±2.0	Polishing

Available Molybdenum- Lanthanum Alloy rod specifications

Diameter mm	Black leather molybdenum alloy rod/rod		Polished Molybdenum-lathanum alloy rod
	Diameter deviation %	Roundness%	Diameter deviation mm
0.8≤d≤3.0	±2%	2	±0.03
3.0<d≤6.5	±2%	2	±0.05
6.5<d≤13.5	±2%	2	±0.08
13.5<d≤25.0	±2%	2	±0.15
25.0<d≤50	±2%	2	±0.25
50.0<d≤100	±2%	2	±0.25

Molybdenum- Lanthanum Alloy chemical composition

La2O3	Sum of other elements	Other content of each element	Delivery status
0.5%~2.5%	≤0.05%	≤0.01%	Rolling / caustic washing / polishing

Molybdenum- Lanthanum Alloy use field
1. Molybdenum heat shield ;
2. Vacuum furnace support frame, carrier plate, plate heater ;
3. Physical vapor deposition molybdenum part .

Molybdenum- Lanthanum Alloy surface color classification
1. Sintered Molybdenum-lathanum alloy plate / rod surface Silver-gray metallic luster;
2. Black-skinned Molybdenum-lathanum alloy plate/rod has a layer of oxide on the surface, the surface is black;
3. Polished Molybdenum-lathanum alloy plate/rod is silver-gray metallic luster;
4. Alkali-washed Molybdenum-lathanum alloy plate The bar cleans off the oxide on the surface of the black skin molybdenum alloy plate and is silvery gray.

Please tell us the quantity of Molybdenum-lathanum alloy you need, we will customize it for you.
