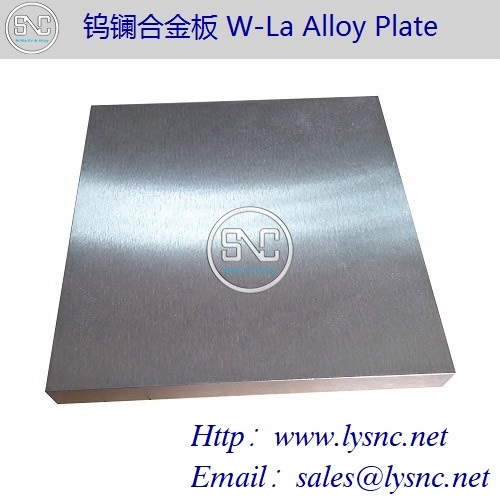

Tungsten-Lanthanum Alloy Plate

钨镧合金板（英文名称：Tungsten Lanthanum Alloy）钨镧合金是在钨基体中以弥散质点存在的三氧化二镧组成的合金。三氧化二镧含量一般为0.5%~2.5%(质量分数)。钨镧合金在拥有纯钨特性的同

Support hotline：

Recommended Products

Product Details

Tungsten-Lanthanum Alloy

Tungsten-Lanthanum alloy is an alloy composed of antimony trioxide in a tungsten matrix with dispersed particles. The content of antimony trioxide is generally from 0.5% to 2.5% (mass fraction). Tungsten-Lanthanum alloy has a higher recrystallization temperature than pure tungsten and has a longer service life than pure tungsten.

Tungsten-Lanthanum alloy sheets are widely used in various fields. Such as high temperature furnace heat shield and heating body, electric light source parts and electric vacuum devices, ion implantation parts and so on.

Available tungsten-rhenium alloy plate specifications

Thickness (mm)	Width (mm)	Length (mm)	surface condition
0.1±0.01	100±0.2	500±2.0	Alkali wash
0.2±0.02	100±1.0	1000±2.0	Alkali wash
0.3±0.02	200±1.0	1000±2.0	Alkali wash
0.4±0.04	450±1.0	1200±2.0	Alkali wash
0.5±0.04	450±1.0	1200±2.0	Alkali wash
0.8±0.08	450±1.0	1200±2.0	Alkali wash
1.0±0.06	450±1.0	1200±2.0	Alkali wash
1.5±0.08	450±1.0	1200±2.0	Alkali wash
2.0±0.10	450±1.0	1200±2.0	Alkali wash
3.0±0.10	450±1.0	1200±2.0	Alkali wash
3-10	150±1.0	1000±2.0	Polishing
10-20	150±1.0	800±2.0	Polishing
20-30	150±1.0	700±2.0	Polishing

Tungsten-rhenium alloy plate composition

La2O3	Sum of other elements	Other content of each element	Delivery status
0.5%~2.5%	≤0.05%	≤0.01%	Rolling / caustic washing / polishing

Tungsten-
rhenium alloy plate use field
1. Tungsten-molybdenum heat-insulation screen
2. Vacuum furnace support frame, carrier plate, plate heater
3. Physical vapor deposition tungsten part

tungsten-rhenium alloy plate surface color classification
1. Sintered Tungsten-Lanthanum alloy plate surface Silver-gray metallic luster;
2. Black-skinned Tungsten-Lanthanum alloy plate has a layer of oxide on the surface, the surface is black;
3. Polished Tungsten-Lanthanum alloy plate, silver-gray metallic luster;
4. Alkali-washed Tungsten-Lanthanum alloy plate, black The oxide on the surface of the Tungsten-Lanthanum alloy plate is washed away and is silver-gray.

Please tell us the thickness, width, length, surface condition, quantity, etc. of the Tungsten-Lanthanum alloy plate you need, we will quote you.
