Molybdenum Boat

  • 钼烧结舟 钼烧结舟盒子采用钼板折弯，铆接或焊接的方式加工而成，可在烧结炉或者热处理炉中作为烧制品的承载容器。 在真空烧结过程中使用密闭的钼承载舟可以减小生产成本，延
  • Support hotline：
Recommended Products

  • Product Details

                             Molybdenum Boat

    The molybdenum sintered boat box is made of molybdenum plate bent, riveted or welded, and can be used as a bearing container for the fired product in a sintering furnace or a heat treatment furnace.

    The use of a closed molybdenum carrying boat in the vacuum sintering process can reduce the production cost and prolong the service life of the vacuum furnace, while the sintering boat gives the sintered product a good temperature uniformity and ensures product consistency.

    Some of the sintered products react chemically with molybdenum at high temperatures, which in turn corrode the vacuum furnace and cause damage to the vacuum furnace. The product is placed in a molybdenum carrying boat for heating, and the carrying boat can not only serve as a carrier for the sintered part, but also can insure the contact of the steam generated by the sintered part at a high temperature with the outer furnace body, thereby protecting the vacuum furnace. Because the cost of replacing the vacuum furnace components is much greater than the cost of replacing the molybdenum boat.

    The molybdenum carrying boat box formed by the molybdenum plate and the molybdenum sheet by the sheet metal bending has the advantages of high strength, long service life, good integrity, strong deformation resistance, not easy to break, and good welding performance.

    We can also produce high temperature molybdenum carrying boats, TZM carrying boats and tungsten carrying boats for

                     processing molybdenum boats.
Machined surface Processing specification
Alkali washing / pickling / sand blasting Customizable specifications

                     chemical composition


Chemical composition (Wt)

 		 Brand Molybdenum content Every other element content Total content of other elements
Mo1 ≥99.95% ≤0.01% ≤0.05%

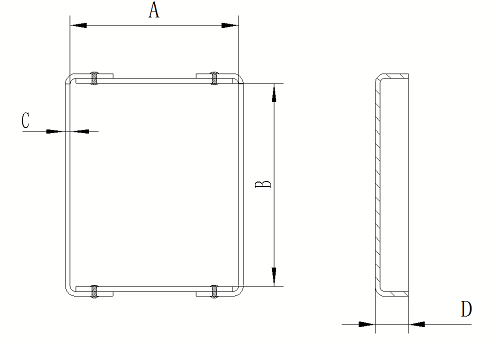

Please let us know the dimensions of the following molybdenum sintering boat and we will quote you.
